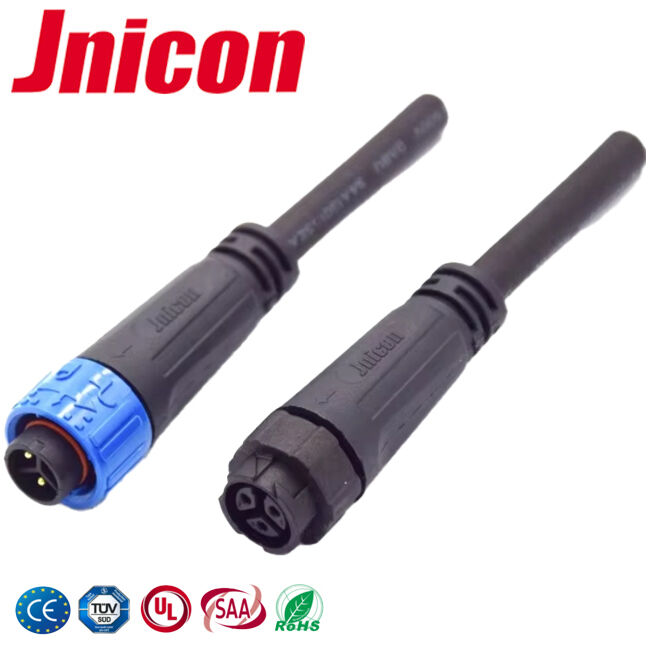

3 Pin M16 10A Waterproof Electrical Connectors Male Female Molded Cable Quick Connector
Connnector features:
1. Quick lock waterproof connector
2. IP67 protection level
3. Could be field assembly to your applications
4. Multicolor available, such as Blue,black
5. Rated current :10A
6. Multicores available, 2 pin-8pin optional
M16 panel mount connectors could be a good option for led lighting fields, no matter for outdoor roading lighting, led display, garden lights etc.
IP67 and IP68 are available, it could be underwater and underground using and still keep good performance.
High quality material ensure long service life , 5 years warranty.
Technical information :
| Connector color: |
Black, blue |
| Waterproof level: |
IP67/IP68 |
| Cable specification: |
0.3-1.5mm2 |
| Cable diameter range: |
4.5mm-11mm |
| Rated current (A): |
10A |
| Operating voltage (AC.V.rms): |
300V |
Connector's reliability :
| Contact resistance: |
<5mΩ |
| Insulation resistance: |
>500MΩ |
| Durability: |
≥3000 mating and unmating cycles |
| Temperature rating: |
-40°C~105°C |
| Connecting mode: |
Solder type/screw terminal |
| Flame-resistance: |
UL94-V0 |
High quality material:
| Sealed against dust and fluid (IP67&IP68) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
RFQ
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
Q: How many materials you can provide?
A: Connectors and cable are made by different material. Usually connector ia made by PVC/Nylon and cable is made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
