IP44/IP65 Bayonet Lock Connect RJ45 Waterproof Connector Alloy Copper 500V
The feature of Dual Ethernet Port RJ45 Waterproof Connector:
• The withstanding voltage of IP65 RJ45 waterproof connector are 500V.
• Bayonet locking style, Good sealing. Push-pull design, safety lock system, straight-through or PCB transfer for optional installation.
• According to the standard conforms to D grade or CAT3e, compatible with CAT5e.
• panel mount connectors, metal housing and locking system are available.
• Shielding system - high frequency noise immunity and electromagnetic interference protection.
• Apply in harsh environment(outdoor and indoor) is still perfect.
• Our waterproof connector have protection level: IP65/IP44.
The specifiction of Multi Pin Waterproof Connector
| Product Specifications |
| Connecting mode |
bayonet Lock connect |
| Protection level |
IP65/IP44 |
| Contact diameter×Qty |
8 Pin |
| Withstand voltage(AC.V)1min |
500V |
| Contact resistance |
<60mΩ |
| Temperature rating |
-40°C~80°C |
| Method of connecting cable |
Solder |
| Prevent the combustion level |
UL94-V0 |
| Material |
| Shell&insulated parts |
High performance engineering plastics |
| Hardware metal |
Zinc alloy |
| Spring |
Stainless steel |
Application:
Four types can be choosed:
straight type dual panel connector
PCB signal panel connector
90 degree panel connector
A/B type pin header panel connector
Product material feature:
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.

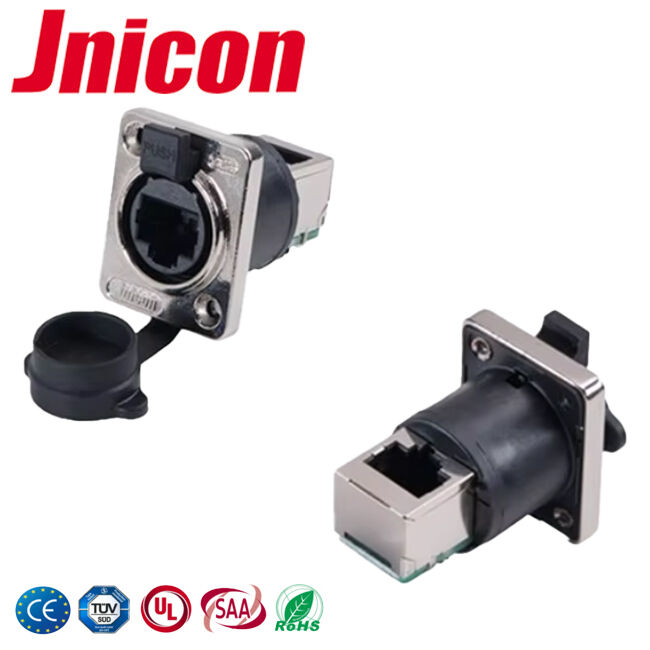

Product detail picture
