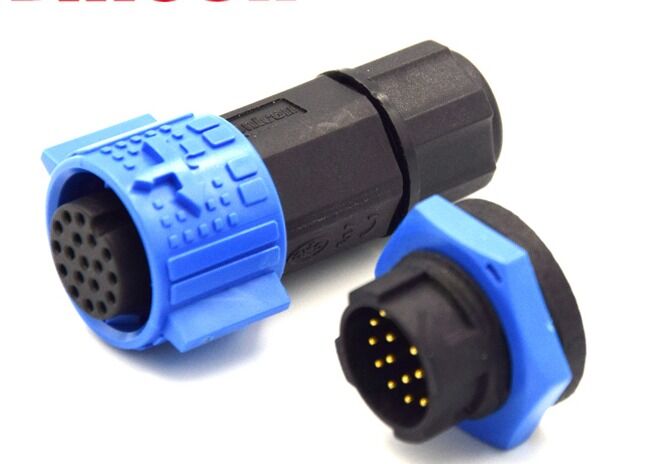

Name: 5A M19 Waterproof Connector Wire To Board CE 18 Pin Circular Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Casa Produtos Conector impermeável dos dados

5A M19 Waterproof Connector Wire To Board CE 18 Pin Circular Connector

Detalhes do produto:

Lugar de origem:	China
Marca:	Jnicon
Certificação:	UL,TUV,CE,ROHS,CQC
Número do modelo:	M19

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100 (10 pares de amostras)
Preço:	negotiable
Detalhes da embalagem:	1. Saco plástico; 2. Caixa; 3. Conforme as necessidades do cliente
Tempo de entrega:	3-5 dias úteis
Habilidade da fonte:	10.000 unidades/dia

Contato

Descrição de produto detalhada

Corrente nominal:

5 ampères

Faixa de cabo:

0,3-0,5mm2

Aplicativo:

Para conexão de dados de sinal

Garantia:

5 anos

Destacar:

5A M19 waterproof circular connector

18 pin wire to board connector

CE certified waterproof data connector

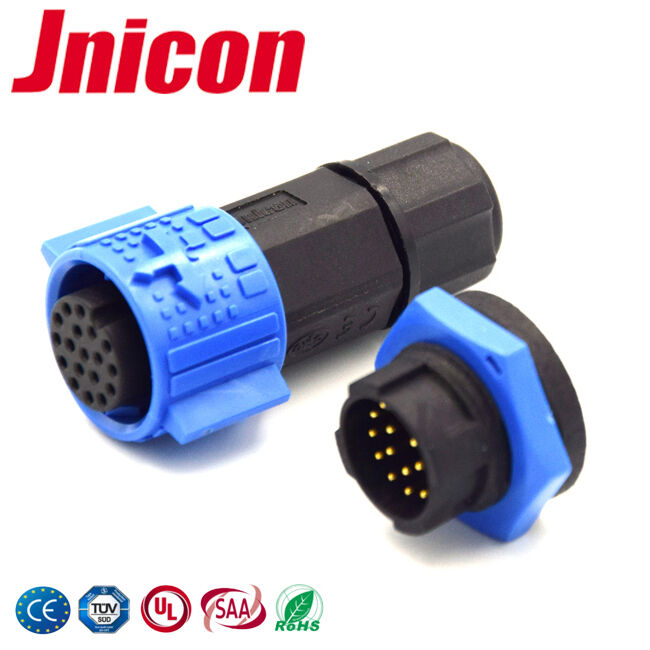

18 Pin Waterproof Data Connector , M19 Multipin Waterproof Connector

Product Description:

1. Push locking type waterproof connector

2. IP67 protection level

3. Solder cable assembly to your applications

4. Multicolor available, such as Blue,yellow,black

5. Multicores are available, 12pin,15pin,16pin or 18pin

18 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission,stage lighting equipment etc.

Technical Data:

Core No. :	18pin
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	0.3-0.5mm2
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	5A
Operating voltage (AC.V.rms):	125V
Withstand voltage (AC.V)1min:	500V

Reliability:

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

High quality material:

Sealed against dust and fluid (IP67)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

High quality material to ensure and improve your applications performance, 18 pin waterproof connectors is a good choice to data transmission no matter for equipment or lights fixtures.
